ADE Red Dot Sight with Optic Mounting Plate for Glock Taurus Canik & More – Replaces Rear Sight Dovetail
This listing includes
-
ADE RD3-028 Ares Pro Red Dot Sight
-

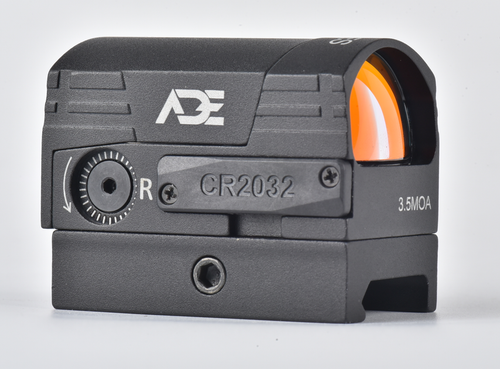

Pre-assembled Picatinny mounting plate
-
Dedicated pistol mounting plate for Glock (also fits select Taurus and Canik models)

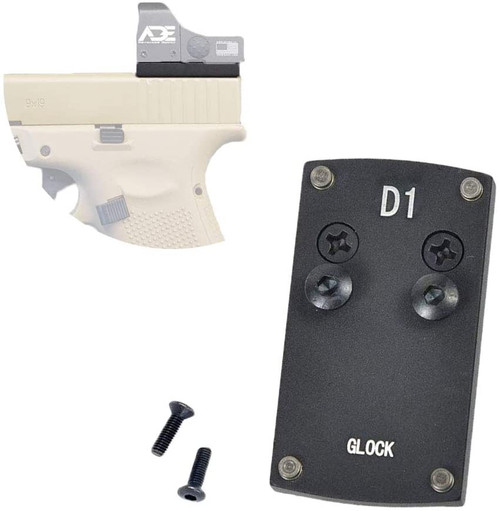

The Glock mounting plate replaces the factory rear sight dovetail on all standard non-MOS Glock models, as well as selected Taurus and Canik pistols. It provides a secure base for popular red dot sights by replacing the rear iron sight.

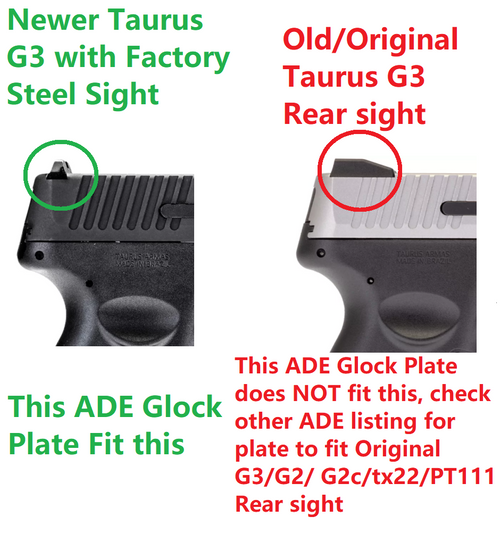

This Glock plate also fits Taurus GX4, G3C, and G3 models with factory steel sights because their rear sight dovetail matches Glock’s exactly. Taurus designed these dovetails based on Glock’s rear sight specifications. Other Taurus models such as G2, G2C, TX22, PT111, and some G3 versions have different dovetail dimensions and require a different mounting plate.
This mounting plate is not compatible with Glock MOS (optics ready) models or Glocks with aftermarket optic cuts.
If you have an aftermarket Glock slide, please consult the slide manufacturer about the optic cut and contact us to confirm compatibility.
For Glock MOS models, you need the official Glock-provided #01 or #05 mounting plate (available free from Glock) to attach the red dot directly. Our plate is designed for standard Glocks replacing the rear sight and is not intended for optics-ready slides.

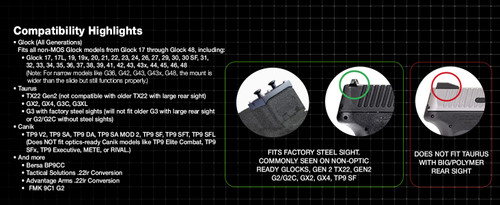

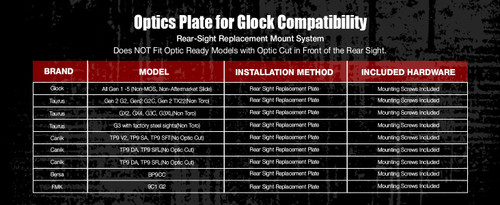

Compatibility Highlights
Glock (All Generations, Non-MOS models)
Fits all standard Glock models from Glock 17 through Glock 48 including
17, 17L, 19, 19x, 20, 21, 22, 23, 24, 26, 27, 29, 30, 30 SF, 31, 32, 33, 34, 35, 36, 37, 38, 39, 41, 42, 43, 43x, 44, 45, 46, 48
(Note: For narrow models like G36, G42, G43, G43x, G48 the mount is wider than the slide but still functions properly)
Taurus
-
TX22 Gen2 (not compatible with older TX22 with large rear sight)
-
GX2, GX4, G3C, G3XL
-
G3 with factory steel sights (not compatible with older G3 with large rear sight or G2/G2C without steel sights)

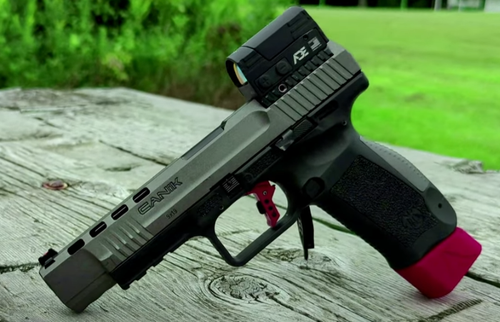

Canik
-
TP9 V2, TP9 SA, TP9 DA, TP9 SA MOD 2, TP9 SF, TP9 SFT, TP9 SFL
(Not compatible with optics-ready Canik models like TP9 Elite Combat, TP9 SFx, TP9 Executive, METE, or RIVAL)
Other Pistols
-
Bersa BP9CC
-

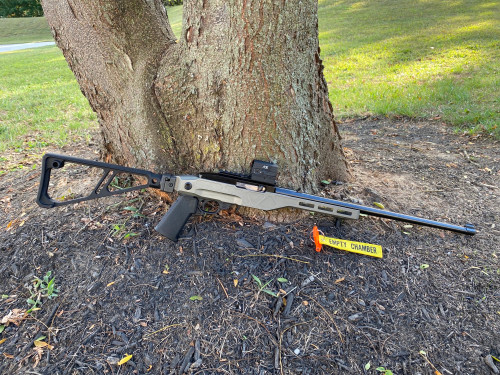

Tactical Solutions .22LR Conversion
-
Advantage Arms .22LR Conversion
-
FMK 9C1 G2
Not Compatible With
-
Glock MOS models including 17 Gen4 MOS, 19 Gen4 MOS, 34 Gen4 MOS, 35 Gen4 MOS, 40 Gen4 MOS, 41 Gen4 MOS, 22 Gen5 MOS, 23 Gen5 MOS, 34 Gen5 MOS, 45 MOS, 43x MOS, 48 MOS
-
Glocks with aftermarket slides that have optic cuts
Construction & Installation
-
CNC-machined aircraft-grade aluminum with hard anodized finish
-
Includes mounting screws and hardware
-
Professional installation strongly recommended to avoid damage or loss of zero
Watch installation video here
Installation Video on YouTube
Included
-
1 × Mounting Plate
-
Mounting screws and hardware

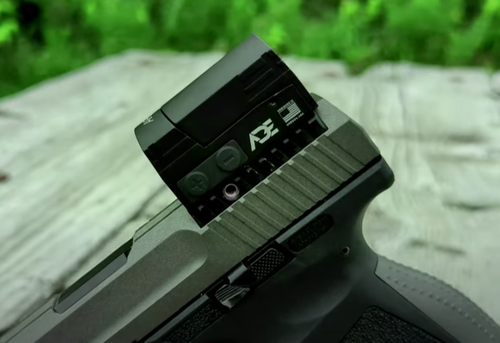

Note: Firearm and red dot sight shown for illustration only, not included

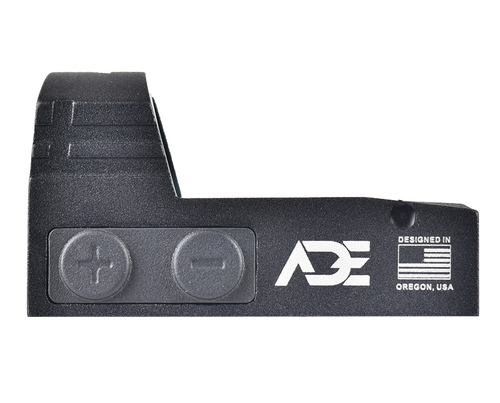

Manufacturer Model: ADE RD3-028 Ares Pro

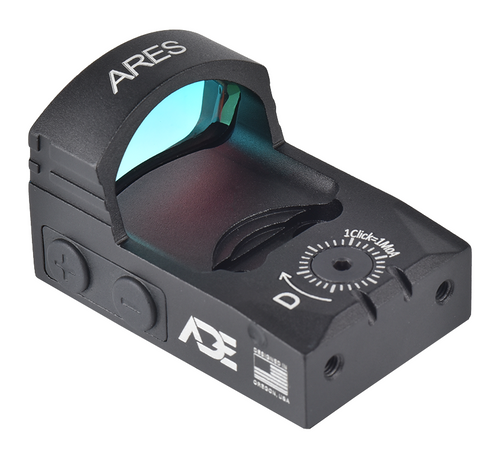

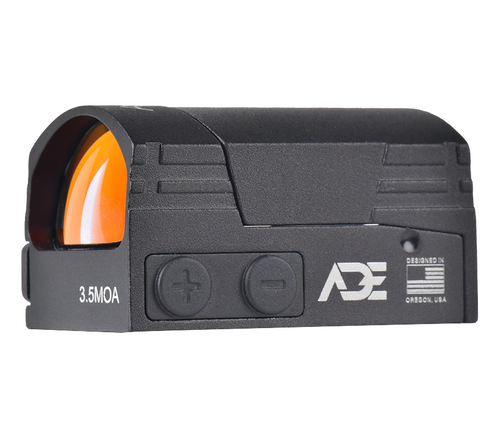

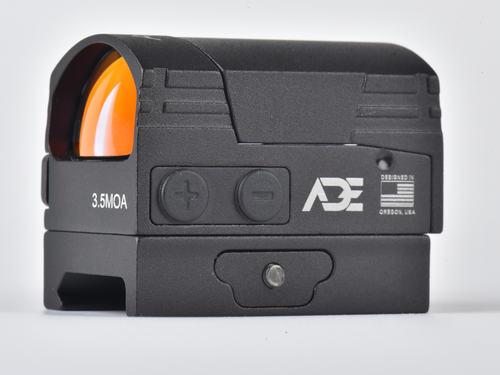

ADE RD3-028 Ares Pro Red Dot Sight Features
-
Motion Activated System automatically sleeps after 5 minutes of inactivity and instantly wakes on motion or vibration
-
Manual power off option disables Motion Activated System
-
Overall dimensions: 1.84 inches length × 1.30 inches width × 1.15 inches height
-
Designed to fit mounting plates that sit above the slide, replacing the rear sight; not compatible with pistol slides that have milled optic cuts made for standard-length red dots
-

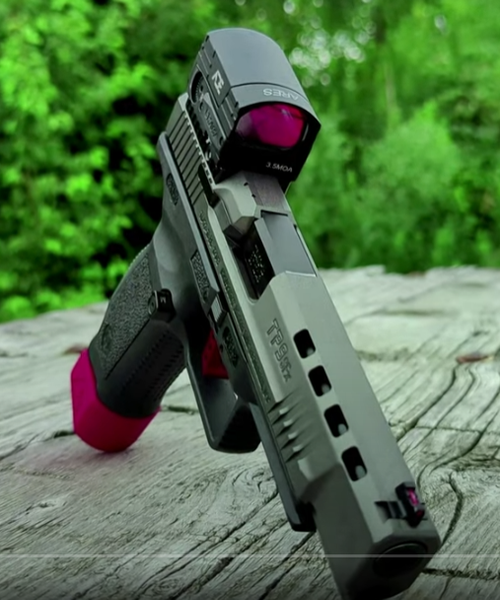

Removable weather shield protects sight from moisture and improves clarity during inclement weather; remains attached when mounted on handgun
-
Promotes rapid target acquisition with precise point of aim
-

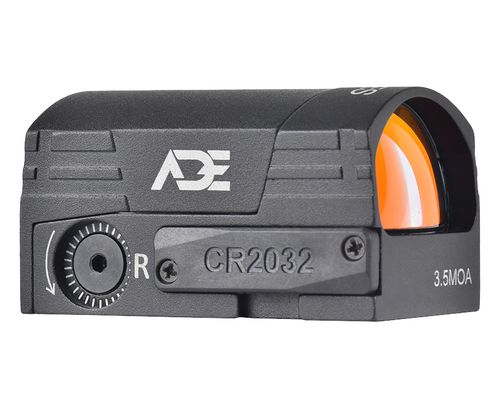

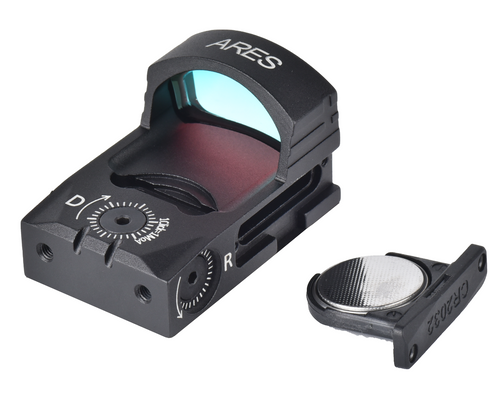

Side battery load system allows battery changes without removing sight
-
Shockproof and fogproof
-

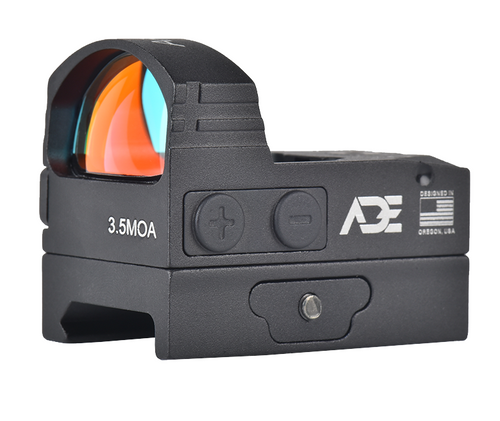

3.5 MOA red dot
-

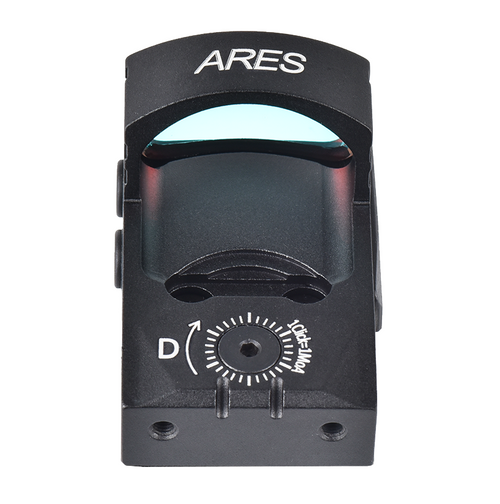

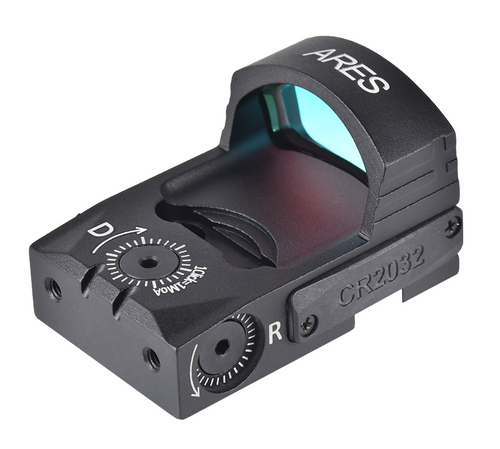

Fully windage and elevation adjustable and lockable
-
Unlimited eye relief
-

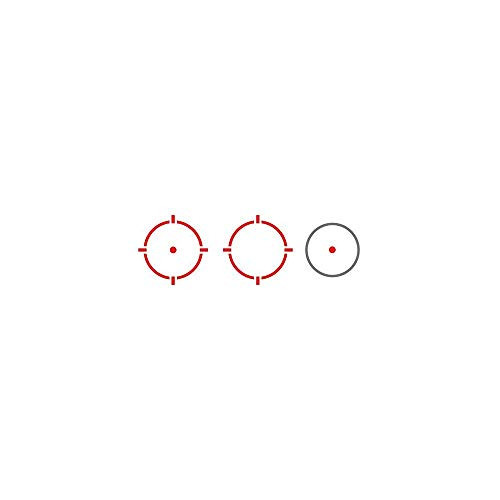

Multiple illumination settings
-

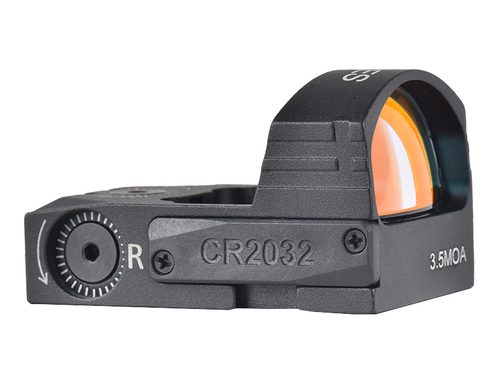

Powered by a CR2032 lithium battery (included)
